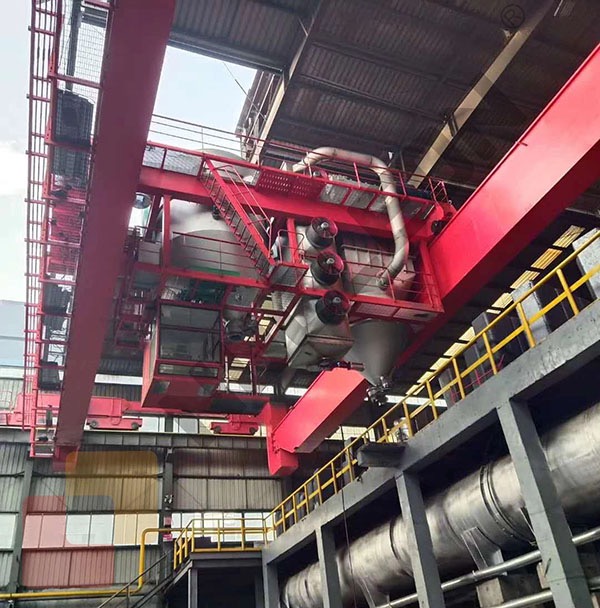

Recently, Nucleon Crane supplies the Anode Carbon Block Roasting dedicated overhead crane system for a new investment by customer which specifically serves electrolytic aluminum process for carbon industry. This crane system configured with multiple operation functions that integrate carbon block feeding, filling material suction and discharge, dust collection and furnace equipment interchanging, therefore production efficiency radically being elevated while improving work environment as well as relieving workforce intensity.
System formation of this Anode Carbon Block Roasting Dedicated Crane consists of dust processing system for filling and discharging process, anode transfer mechanism, crane bridge, shifting trolley, electrical control system etc. Applicable crane duty A6-A8, filling and discharging volume: 40-80m3 /h, dust emission: ≤ 10mg/N m3 . All moving mechanisms include crane travel, feeding pipe and clamp hoisting adopt VVVF speed regulation incorporate PCL control system in order to secure operating accuracy and stability.
Crane structural formation can flexible change depends on the layout of workshop, such as shifting trolley can travel under crane bridge or lower crane bridge to make rooms overhead, crane traveling mechanism is able to be supported by four independent wheel blocks at each side with total eight units in terms of reduce wheel load so as to save workshop construction cost.
