Capacity: up to 16 ton
Hook path: up to 20 m

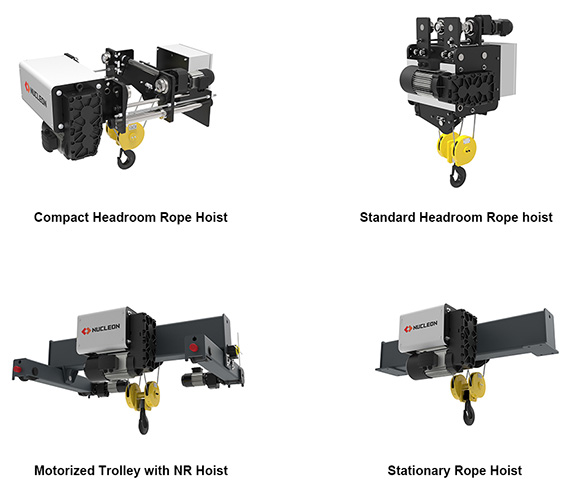

Application: I-beam, H-section, two-rail running trolley
Features:

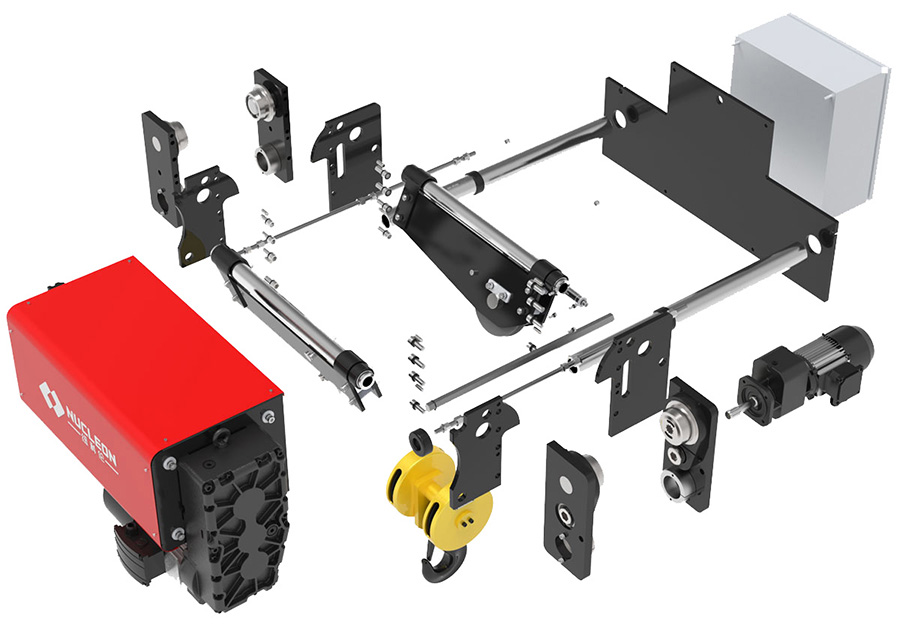

■ Hoisting motor parallel to rope drum, compact hoist layout with optimized headroom and extended hook approach.
■ Lifting speed has high and creep operation mode by default, optional with VVVF operation mode.
■ Maintenance free designed hoisting mechanism, motor has thermal switch to avoid overheat.
■ Pre-oiling gear reducer, cutting edge sealing technology totally keep grease from leaking out, transmission gear is
permanently lubricated, free of maintenance for extended service time.
■ Large drum diameter increases rope winding capacity in terms of elevated hoist lifting height.
■ Hoist travel adopt anti-rolling wheel design to balance hoist weight when traveling on I-beam, no counter-
weight design result to a lighter hoist self-weight.
■ All hoist motors have energy efficiency features, hoist working with low power consumption.
Multiple choices

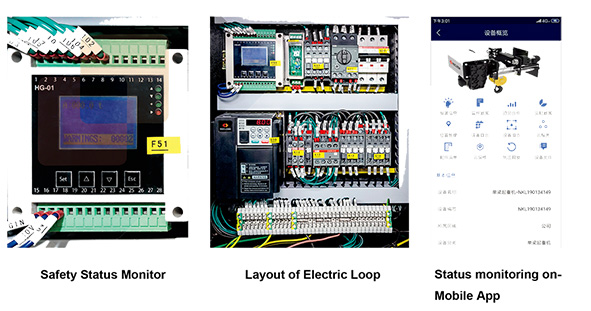

Status Monitoring System (Optional Pack)
■ Compute remaining hoist safe working cycles
■ Accumulate remaining effective braking moment
■ Record hoist starting and traveling time
■ Record loading weight during every single hoisting time
■ Real-time monitor power input status
■ Motor overheat alert
■ Accessible radio network extension, import user data for status monitoring management with remote devices.
